BBox Drum Generator

The BBox Drum Generator is an Arduino-based Midi sequencer mounted inside a Banana Box. The BBox contains a few preset drumbeats. These drumbeats form the basis for a drum variation algorithm (explained here). The amount of introduced variations is controlled by the blue rotary knob.

I've created four pushbuttons by mounting LEDs on top of PCB mounted mini pushbuttons. This idea is based on this article.

The two top buttons navigate through the functions of the BBox. The two lower buttons change the value of the function. Currently only the BPM and the Drum Preset can be changed.

The BBox only generates midi messages, the sound is generated by a Roland Juno-D.

The Video



The Picture

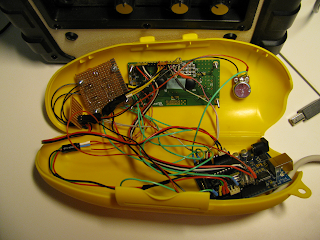

The Guts
Big mess o' wires O_o

Next time, I'll create a proper Arduino shield.
